32-bit extended Library Components (version 3.01)

Starting with the release 3.01 of Deeds, many library components have higher bit count versions than previously (32 bits or more).

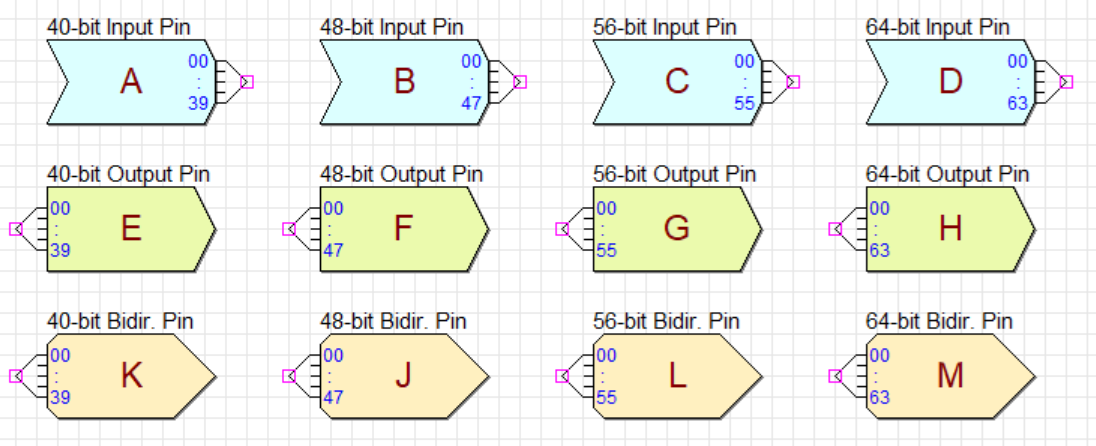

Custom Block Element (CBE) Pins (In, Out and Bi-Dir): added the 40, 48, 56 and 64-bit size.

Test Points: added the 20, 24 and 32-bit size.

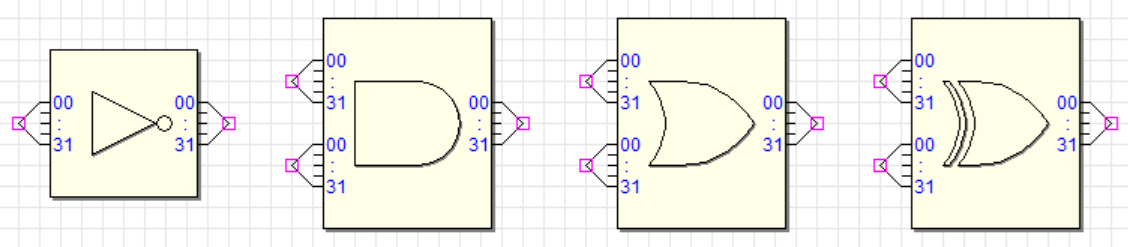

Bus type Gates (NOT, AND, OR and EXOR): added the 32-bit bus size.

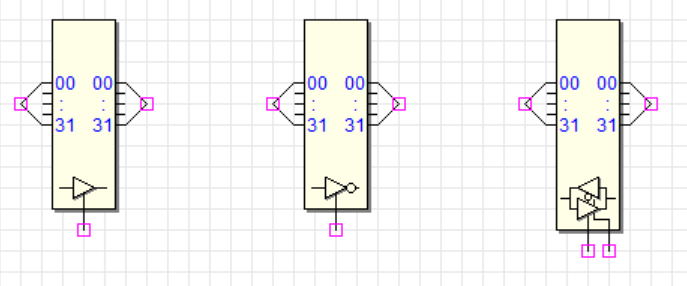

Bus type Tri-state Buffers: added the 32-bit bus size.

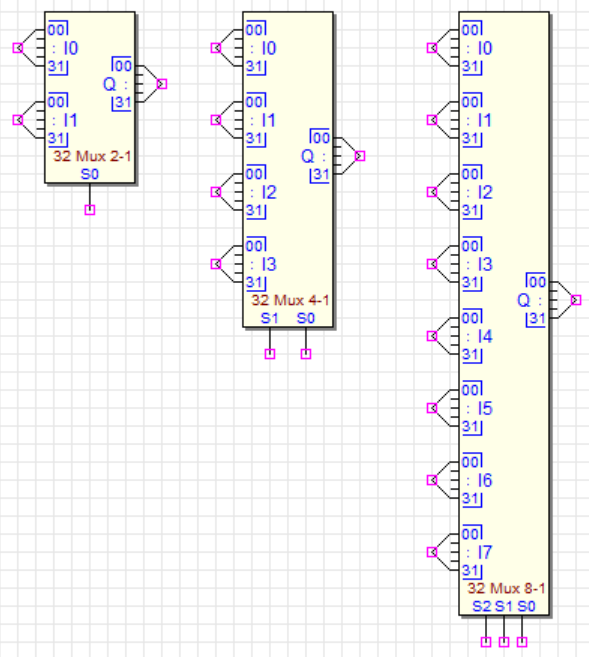

Bus Multiplexers (2-1, 4-1 and 8-1): added the 32-bit bus size.

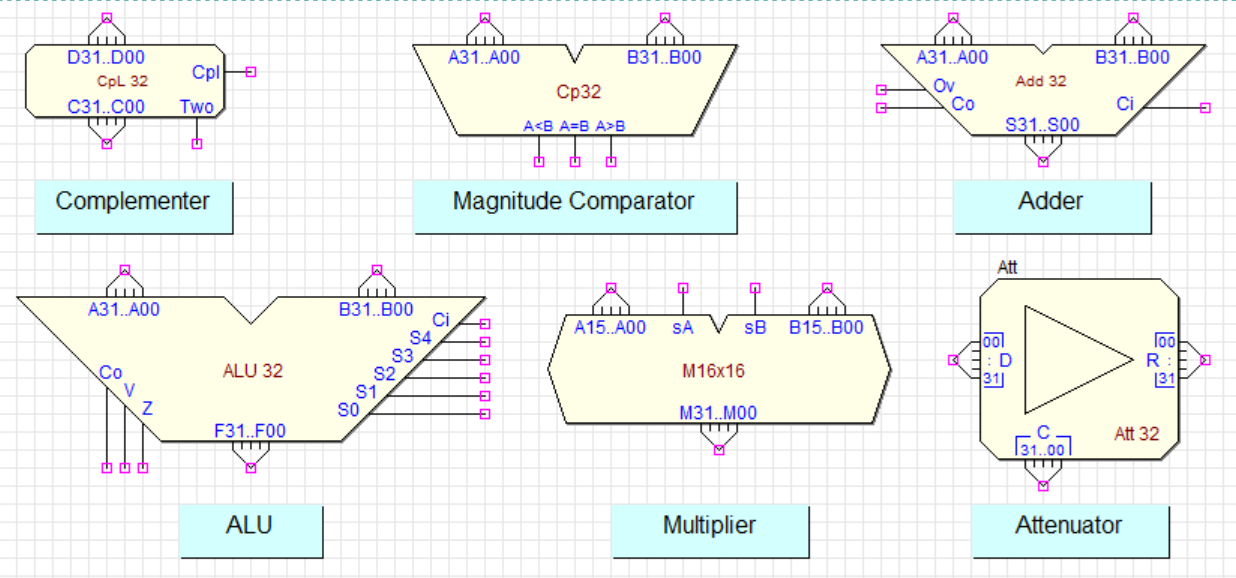

Arithmetic Circuits: added the 32-bit size.

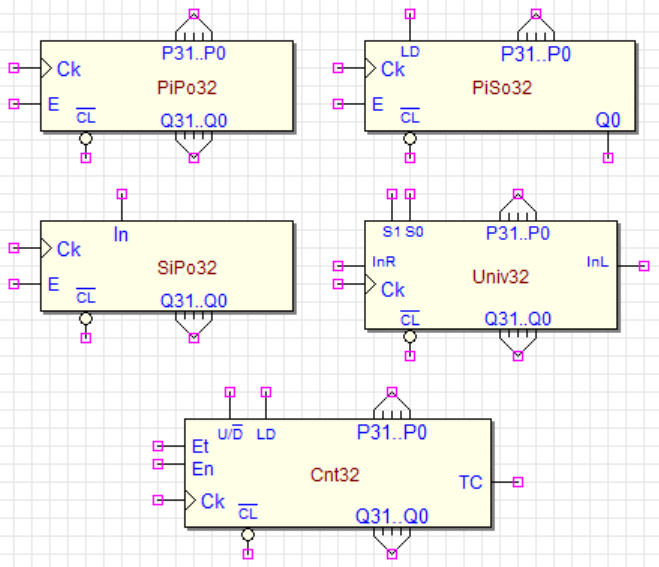

Shift Registers and Counters: added the 32-bit size.

Synchronous Random Access Memories: added the 32-bit size.

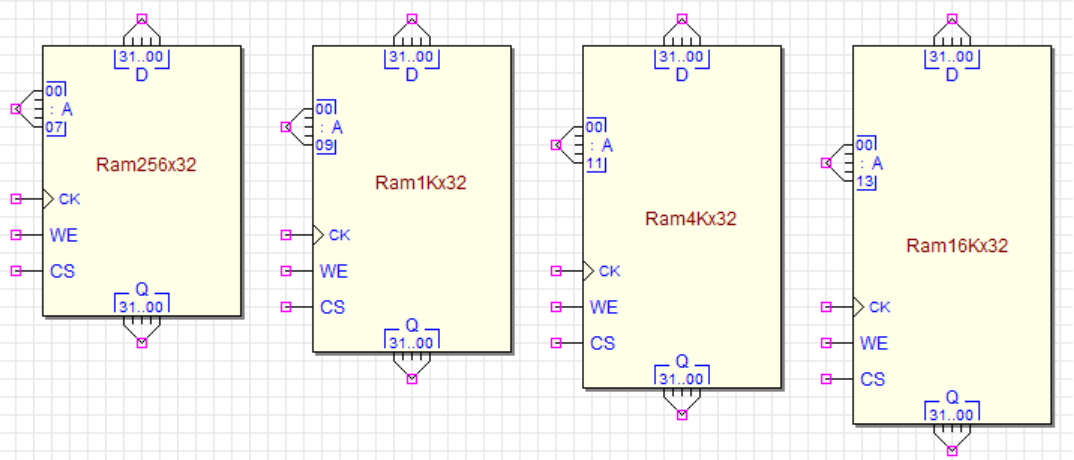

(Separated Input and Output Data Lines)

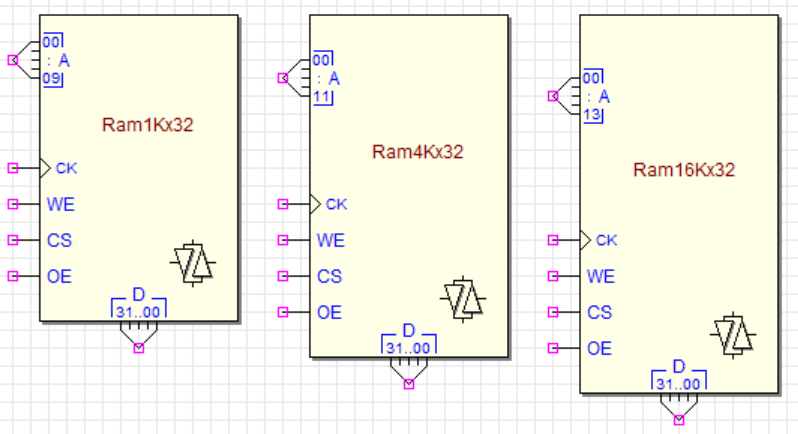

(Bi-directional Data Lines)

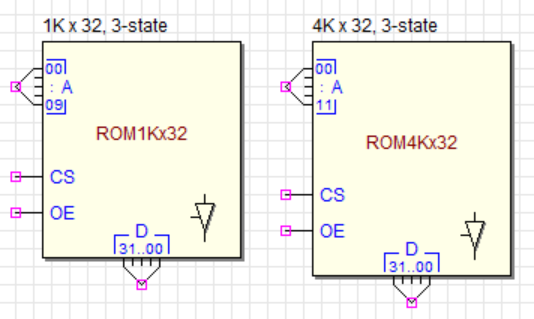

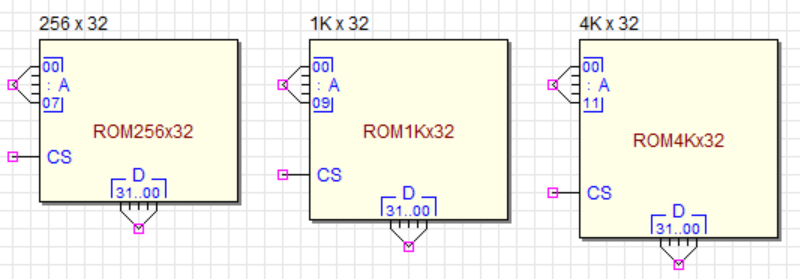

Read Only Memories: added the 32-bit size.

(Simple Output Data Lines)

(Tri-state Output Data Lines)
